Concrete Mixer Liner
Premium Ni-Hard and High-Chromium Alloy Concrete Mixer Liners engineered for planetary, twin-shaft, and pan mixers. Maximum abrasion resistance and extended operational lifespan in concrete batching plants.
High-Chromium Abrasion Resistant Liner Plates
VOTNE manufactures precision-cast high-chromium alloy and Ni-Hard concrete mixer liner plates. Designed to withstand severe aggregate impact and continuous abrasive sliding, our liners ensure minimal wear down and long-term protection for your batching equipment.
Concrete Mixer Liner Product Range

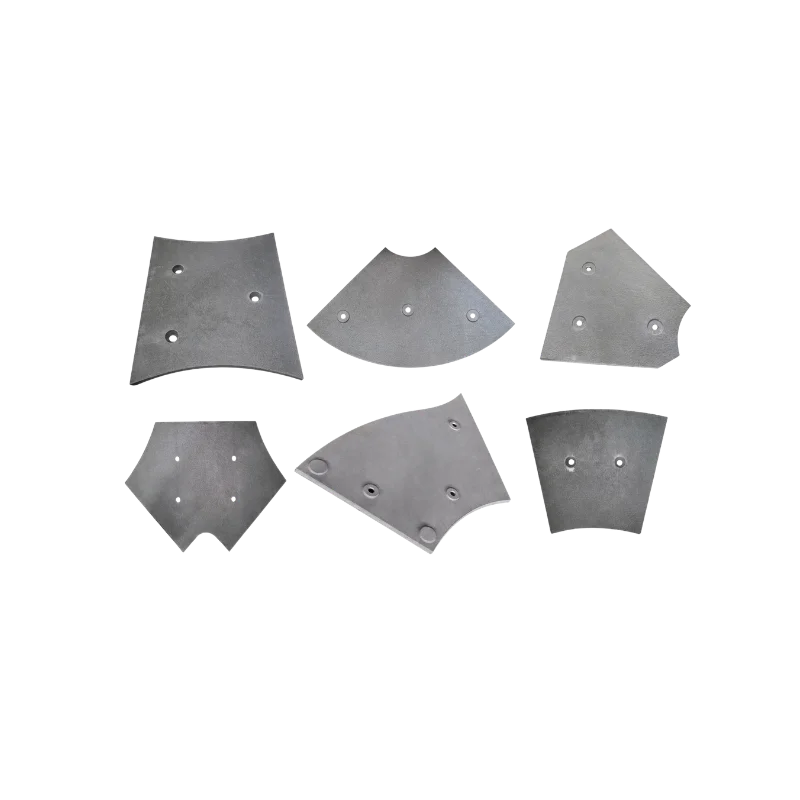

Concrete Mixer Drum Liner
- Ni-Hard and High-Chromium alloy formulation with hardness >= 62 HRC
- Engineered for planetary and twin-shaft concrete batching mixers
- Resists high impact and aggressive aggregate friction
- Extends mixer shell lifespan and reduces downtime

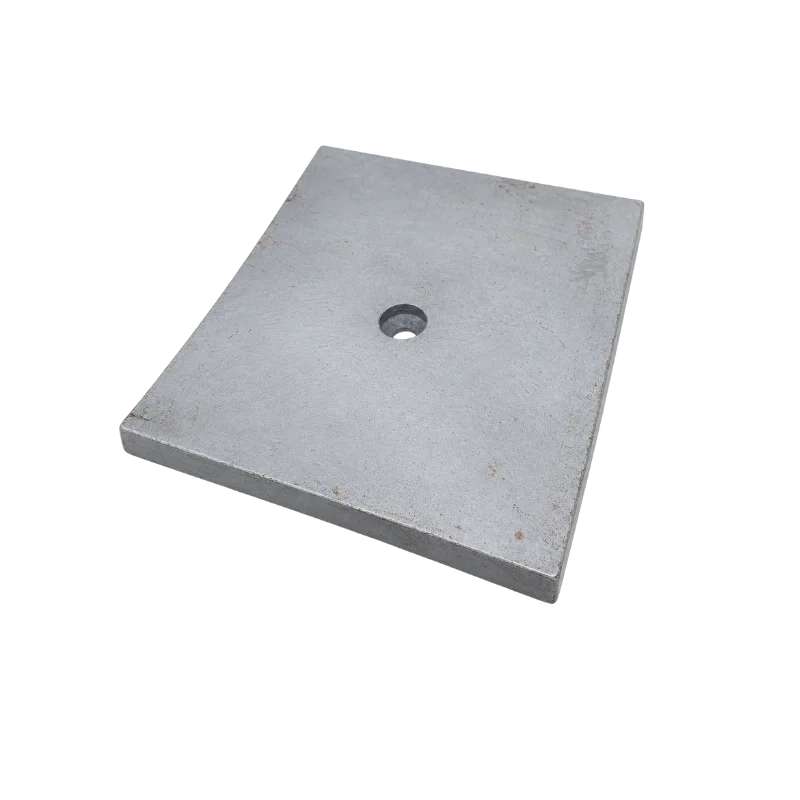

Concrete Mixer Bottom Liner
- Heavy-duty bottom trough floor tiles for twin-shaft and pan mixers
- Absorbs multi-ton aggregate drop impact without spalling or cracking
- Precision-contoured radius fit for tight joint sealing
- Maintains 3.5mm arm tip clearance for high mixing efficiency

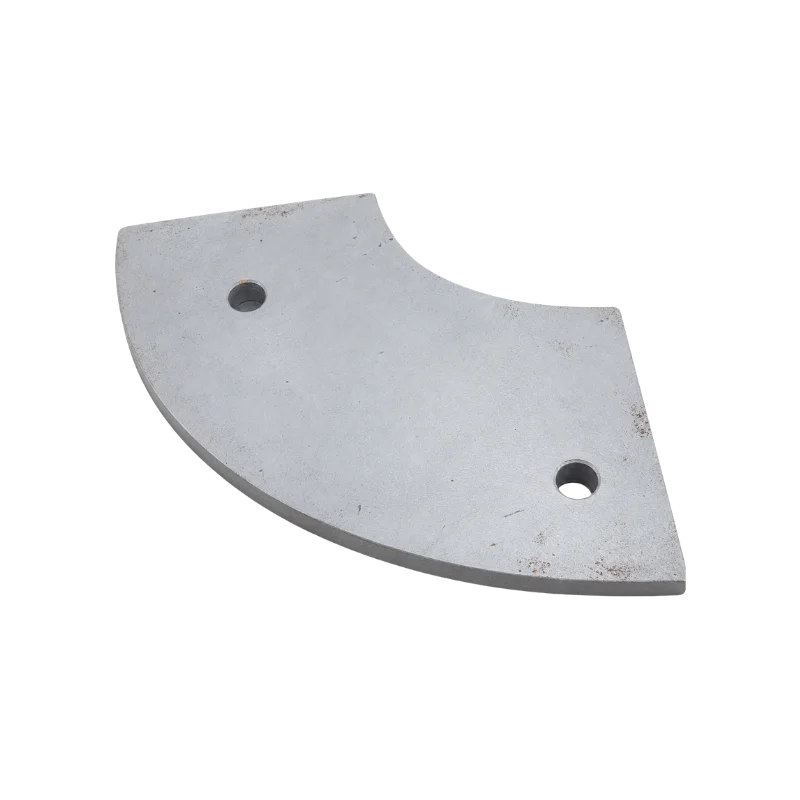

Concrete Mixer Side Liner
- Wear-resistant side and wall liner tiles for concrete mixers
- Precision bolt-on mounting configuration for quick replacement
- Custom thickness options available for heavy-duty batching plants
- Protects outer casing against abrasive slurry and friction

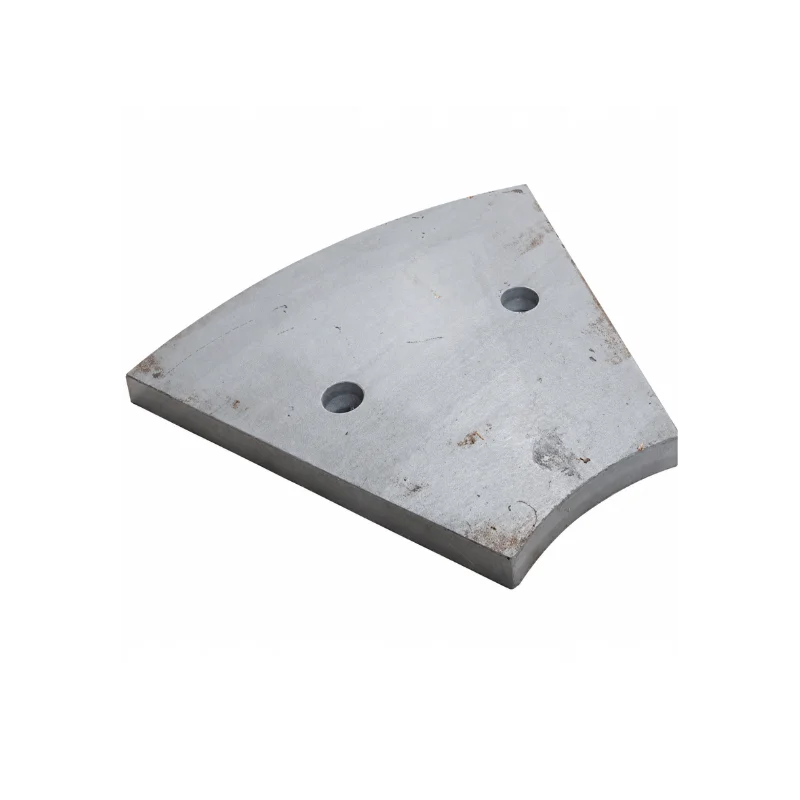

Concrete Mixer End Liner
- End-wall wear liner plates for twin shaft and pan concrete mixers
- Provides complete end boundary sealing and shell protection
- High thermal and shock resistance for continuous duty
- Compatible with major global concrete mixer brands

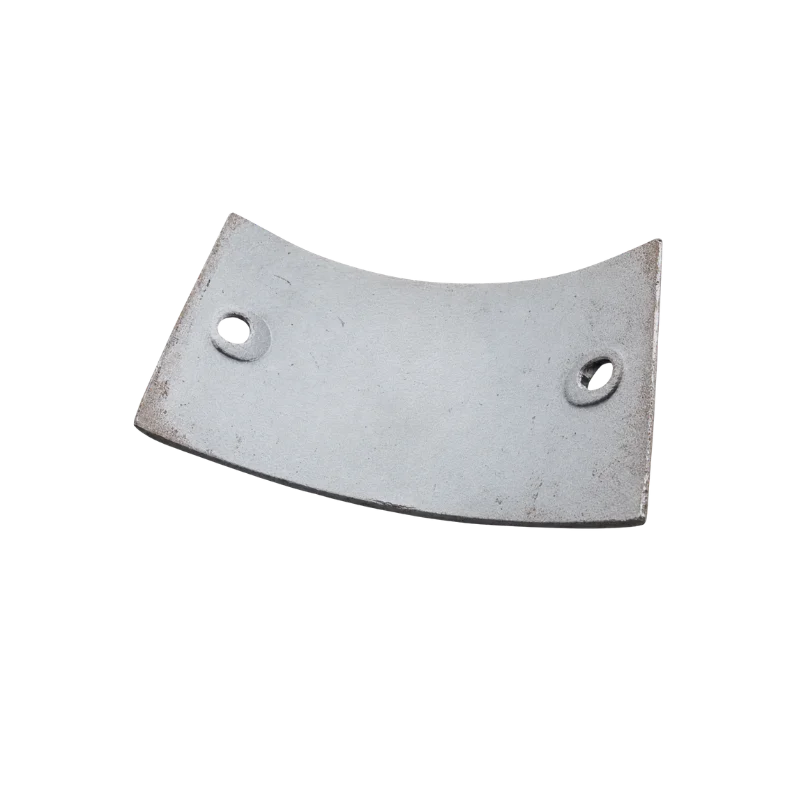

Concrete Mixer Door Liner
- High-durability discharge door liner plates
- Custom-machined for tight sealing on discharge gates
- Prevents concrete paste leakage during mixing cycles
- Maximum wear life in harsh discharge operations
Concrete Mixer Liner Selection & FAQ
What alloy materials are used for VOTNE Concrete Mixer Liners?
Our concrete mixer liners are cast using high-chromium alloy steel (Cr20-Cr26) and Ni-Hard white iron with hardness exceeding 62 HRC, providing maximum resistance against abrasive aggregates.
Are these liners compatible with major concrete mixer brands?
Yes, VOTNE manufactures standard replacement liners as well as OEM custom-fit liners for major twin-shaft, planetary, and pan concrete mixers globally.
How do I choose between Ni-Hard and High-Chromium liners?
High-Chromium alloys offer superior impact toughness and wear resistance for heavy aggregate mixing, while Ni-Hard provides excellent cost efficiency for standard concrete batching operations.
What is the typical service life of VOTNE mixer liner plates?
Depending on aggregate hardness and batch volume, VOTNE high-chromium liner plates typically deliver 250,000 to 400,000 m³ of concrete production before requiring replacement.
How are liner plates mounted and replaced during maintenance?
All VOTNE liner plates feature precision-countersunk bolt holes matching original mixer shell layouts for fast, secure bolt-on installation and minimal maintenance downtime.
