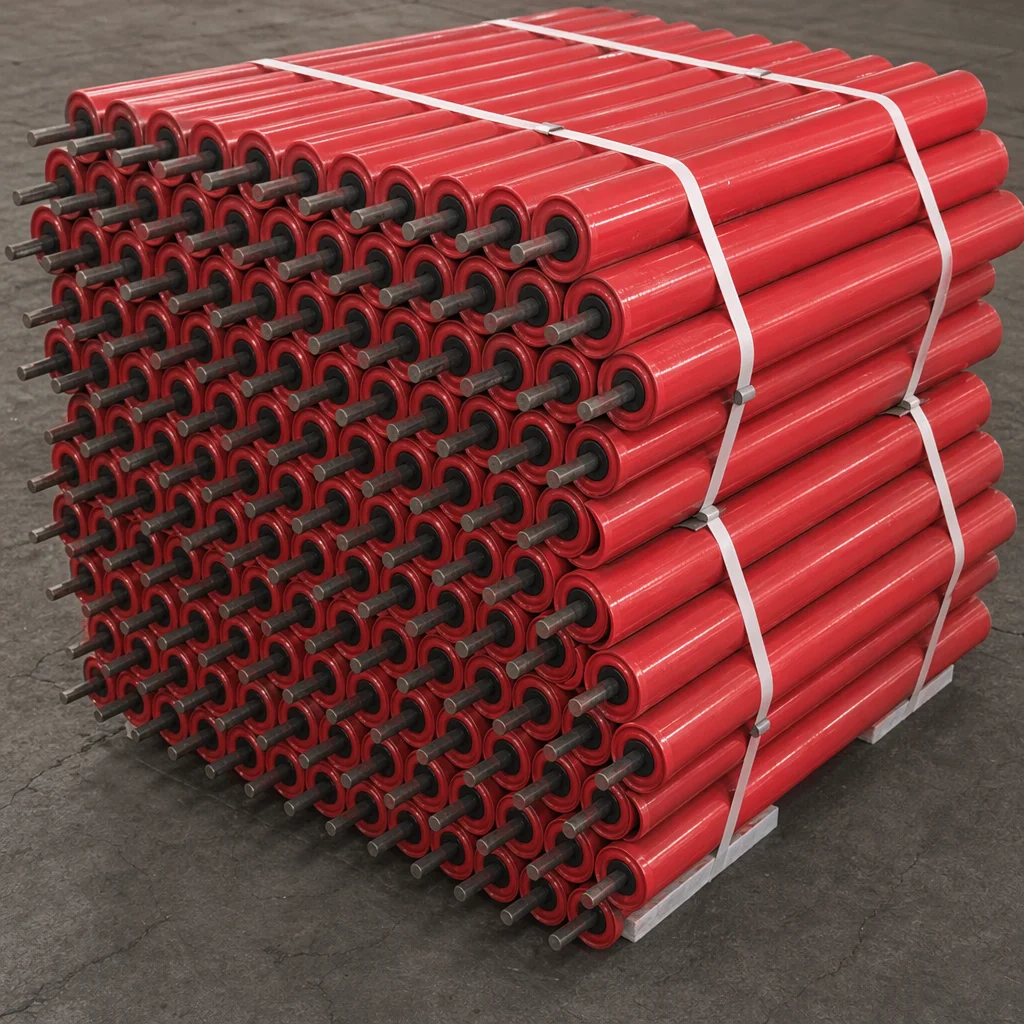

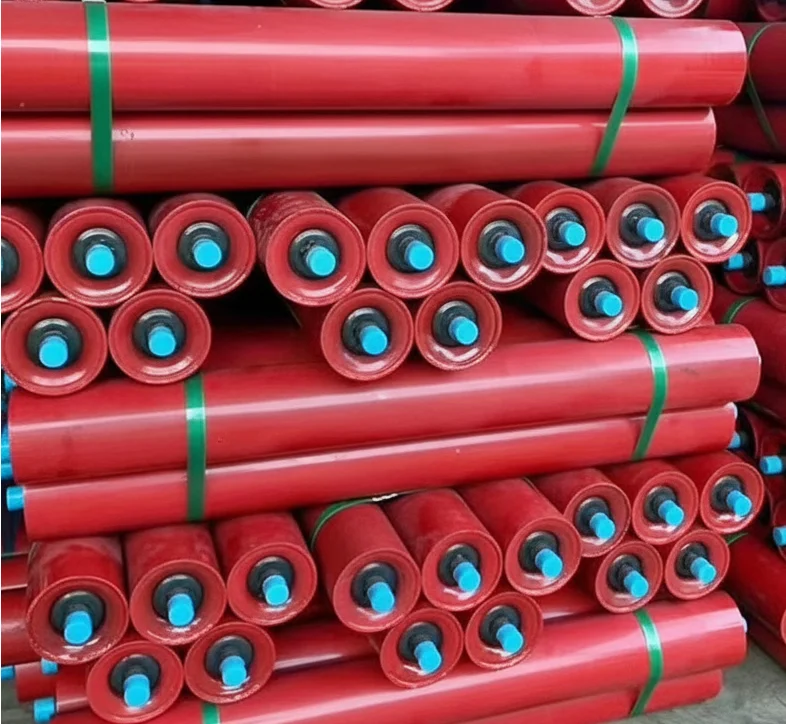

Flat Carrying Idler Roller
Technical Specifications
Key attributes
| Product name | Flat Carrying Idler Roller |
| Application | Picking / Sorting / Packaging / Discharge Points |
| Material | Precision Steel Tube |
| Type | Parallel Carrying Idler |
| Bearing Type | Sealed Deep Groove Ball Bearing |
| Roller diameter | Ø76mm, Ø89mm, Ø108mm, Ø114mm |
| Frame Finish | Powder Coated / Galvanized |
| Special Features | High Concentricity, Low Run-out, Long Service Life |
| Keyword | Flat Idler, Parallel Roller, Horizontal Belt Support |
Functional Overview
The flat carrying idler provides a stable, horizontal foundation for conveyor belts in applications where troughing is not required or is physically impossible. This configuration is widely used in manual picking stations, automated sorting lines, and at the discharge end of conveyor systems.
Our flat idlers are manufactured with strict tolerance controls to ensure high concentricity. This results in incredibly smooth belt travel and reduced noise levels, which is particularly important in indoor sorting facilities or food processing environments where operator comfort is a priority.
Key Features

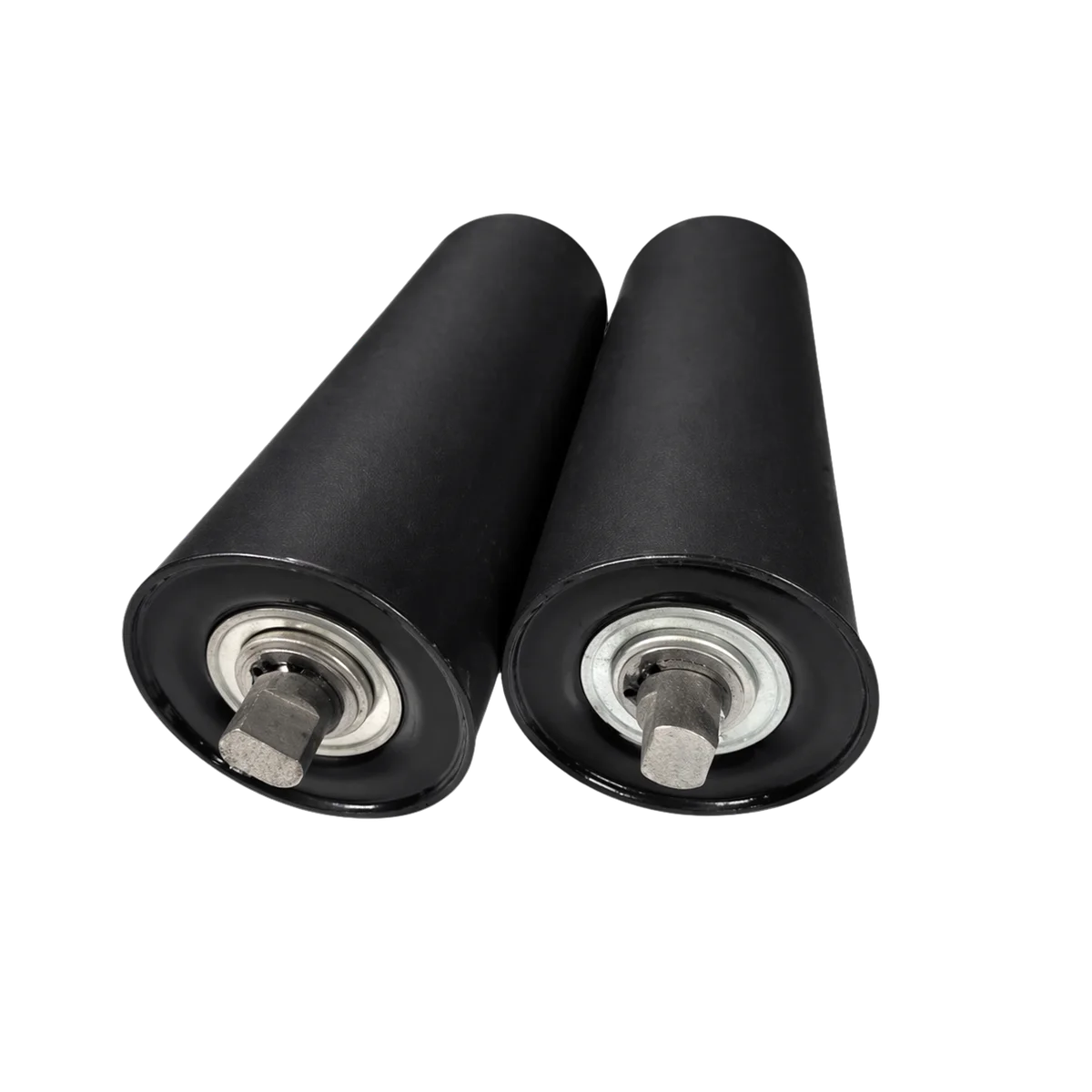

1. Robust Single-Roll Construction
Designed to span the full width of the conveyor belt, our flat idlers use a single, high-strength roller tube supported by a heavy-duty bracket set.
2. Precision-Machined Concentricity
Every roller is machined to achieve low total indicated run-out (TIR), ensuring the belt stays level and minimizing energy consumption.
3. Integrated Labyrinth Sealing
Features the same multi-stage sealing system as our heavy-duty troughing rollers, protecting the bearings from dust and contaminants.
4. Custom Surface Treatments
Available with rubber lagging or specialized coatings to increase friction for specific belt types or to prevent material build-up.
5. Versatile Mounting Brackets
Our flat idler sets come with standard or drop-style brackets to match various conveyor frame heights and installation requirements.
Manufacturing Technique
| Item | Conveyor roller Size | Conveyor belt width Size |
|---|---|---|
| carrier roller | Φ89*150mm | 500mm |
| Φ89*240mm | 650mm | |
| Φ89*305mm | 800mm | |
| Φ108*375mm | 1000mm | |
| Φ108*455mm | 1200mm |
Flat Idler Selection Guide:
Flat idlers are selected based on the total belt width and the maximum expected load per meter. For high-speed sorting, balanced rollers are mandatory to prevent resonance.
In recycling or food processing, we recommend Rubber Covered Flat Idlers to provide additional cushioning and protect the belt from sharp materials.
Maintenance intervals are generally longer than troughing idlers due to the uniform load distribution across the single roller.
Applications
Manual Picking & Sorting
Provides a flat surface for operators to easily identify and sort materials without the belt curvature of troughing systems.

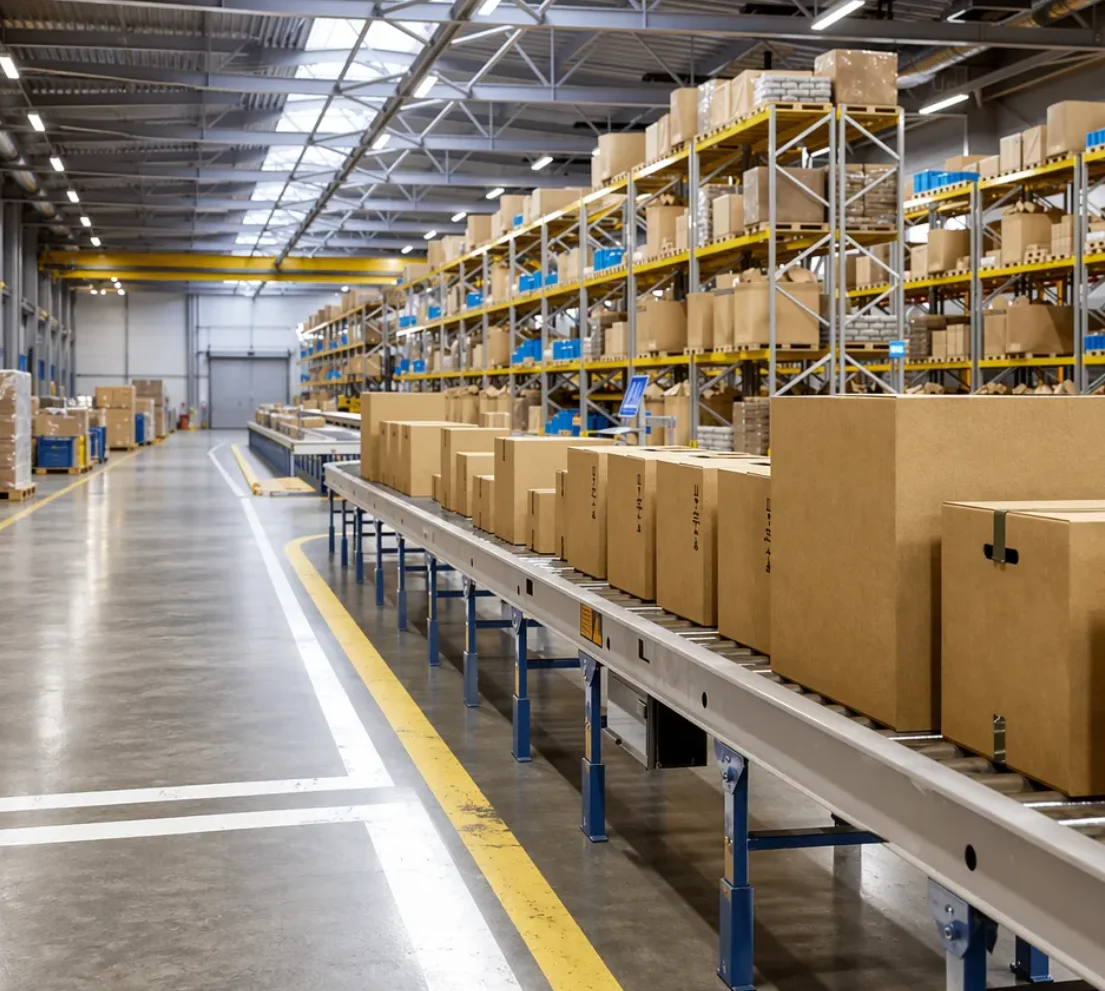

Packaging & Warehouse Logistics
Used in distribution centers where packages require a stable, horizontal base for scanning and labeling.
Recycling & Waste Management
Ideal for flat-bed conveyors used in magnetic separation and manual sorting of recyclables.
Food Processing (Standard Grade)
Suitable for transporting packaged food items where the belt must remain perfectly level for transfer between machines.
Frequently Asked Questions (FAQ)
1. When should I use a flat idler instead of a troughing idler?
Flat idlers should be used when the belt does not need to contain bulk material (like ore or grain) and instead needs to provide a flat surface for packages, sorting, or discharge stations.
2. Are flat idlers the same as return idlers?
They are mechanically similar, but carrying flat idlers often feature heavy-duty brackets and thicker shells to support the loaded belt, whereas return idlers only support the empty belt.
3. Do you offer rubber-coated flat rollers?
Yes, we can provide vulcanized rubber lagging or slip-on rubber sleeves to improve belt grip and provide impact cushioning.
4. What is the maximum width available?
We can manufacture single-roll flat idlers for belt widths up to 2400mm, with reinforced shafts to prevent deflection.
5. Are these rollers suitable for high-speed operation?
Yes, our rollers are precision balanced for high-speed operation, typically up to 4.5 m/s, with extremely low run-out.
